The diac is a bidirectional trigger diode which is designed specifically to trigger a triacs or SCRs.

Diacs do not conduct (except for a small leakage current) until the breakover (reverse breakdown/avalanche) voltage is reached.

At that point the diac goes into avalanche conduction and the voltage drop across the diac snaps back. (about 5 volts)

This creates a breakover current sufficient to trigger a triac or SCR.

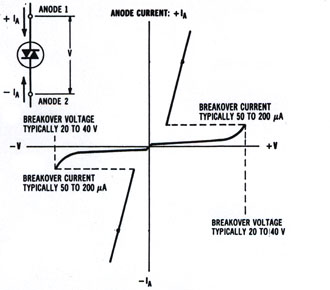

 A typical characteristic is shown below with its schematic symbol:


   Most diacs have symmetric switching voltages. Typical diacs have a power dissipations ranging from 1/2 to 1 watt.



Typical diacs that are supplied by American Microsemiconductor

ELECTRICAL CHARACTERISTICS  (T=25oC)
PART NUMBER

Breakover Voltage

V

Breakover Voltage Symmetry

V

Dynamic Breakback Voltage

V

Breakover Current

ľA

Peak Pulse Current

A

Min  Typ  Max MAX MIN MAX MAX
D30 28   32   36 3 5 100 2.0
D40 35   40   45 3 5 100 2.0
ST2 28   32   36 3.8 - 200
HT32 27    -     37 3 5 50 2.0
DB3 28   32   36 3 5 - 1.0
